These pictures illustrate the mechanics.

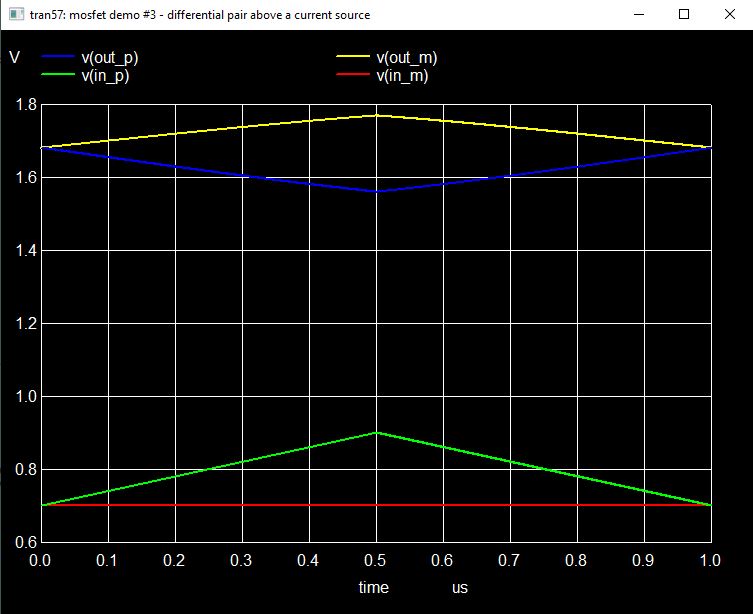

The green and red traces are the inputs to the differential amplifier. Notice that the plus ramps from 0.7v to 0.9v while the negative stays at 0.7v. So there is a 0.2v differential at the peak of the ramp, but the inputs are “lopsided” because the plus side of the pair is doing all the work.

The blue and the yellow traces are the outputs from the differential amplifier. Notice that the difference v(out_m)-v(out_p) starts at zero and gets wider as the difference between the inputs increases.

The most important thing to notice is that the output sides are moving in opposite directions symmetrically even though the inputs were not. The output is tracking the difference (that’s the whole point).

Amp

This chart makes it easier to see the difference. The green trace is the difference between the input voltages and the red trace is the difference between the output voltages. You’d never know that the inputs were lopsided because it’s only the difference that matters.

Amp

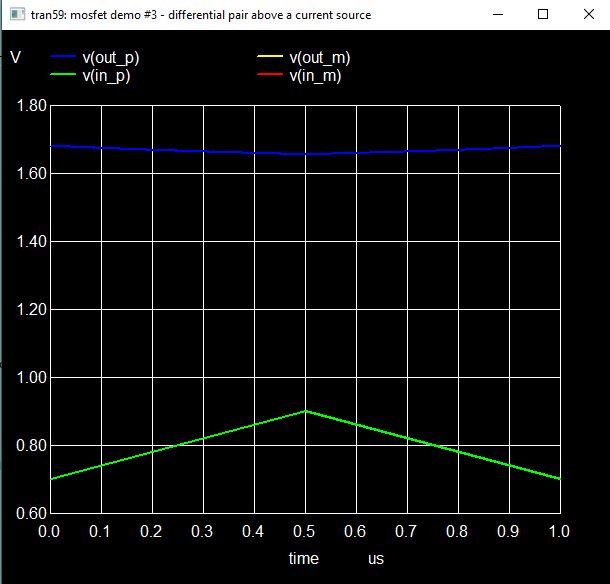

Here’s the proof. In this test we ramp the plus input and the minus input in tandem. The two traces are on top of each other (green). Notice that the output voltages are almost flat across the entire test (blue). This is called common mode rejection.
